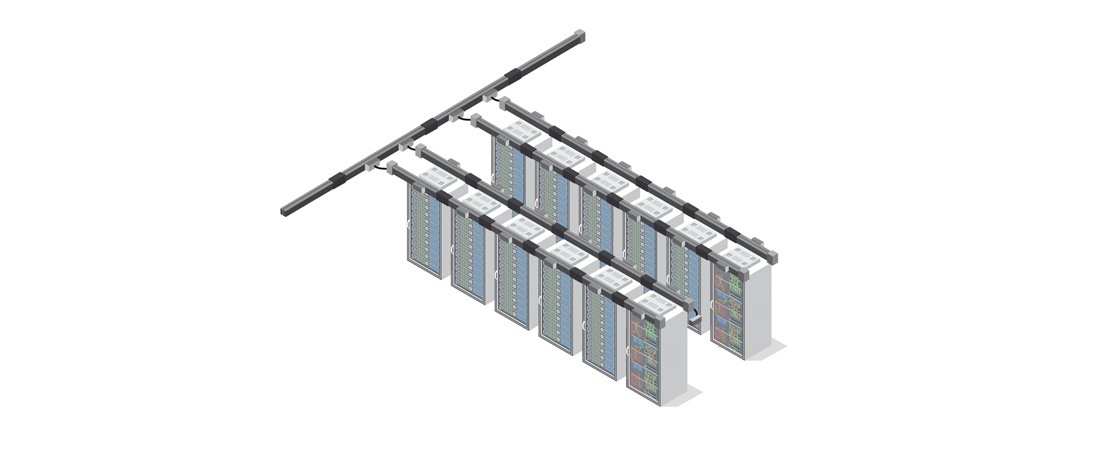

Data-way is suitable for Datacenters that need rack relocation or expansion LSC IDC Solution is consist of busduct, Plug in Unit and Monitoring system Rating is from 160A~800A, Specially designed Plug in unit which has max 6 circuit And different function to monitor power consumption, current and Harmonics

General Data

Hight Current Density

The busduct has a compact design compared to the existing models by using an effective heat-radiating housing profile and can carry from 160A up to 800A with reduced loss of electric power.

Permissible operating Temperature

The cross sectional areas of the conductor and housing profile are designed to meet the standard permissible operating temperature of IEC 61439-1, 6 or UL 857. Therefore the temperature rise limit of the housing is within 55K or less of the ambient temperature.

Eco-Friendly

Data-way acquired RoHS certification. Only using components without hazardous substances such as lead, cadmium mercury and chrome.

Conductors

Data-way uses either copper conductors with conductivity over 99% or aluminum conductors with conductivity over 61%, u shape of conductor enables the Data-way to achieve the best performance and easy distribution.

Connection

Kit : DH(dual head) bolts and Visible-label(Redtag)
Check for installation using the contact

Housing/Distribution

Data-way uses an effective heat-radiating aluminum housing which produces an excellent mechanical strength and heat radiation. It provides two distribution solution of Track type/Plug in type.

Smart-i-Ph Box

Smart-i-Ph Box #1

- Reinforced plastic enclosure
- Up to 63A
- Up to two receptacles available.

Smart-i-Ph Box #2

- Metal enclosure
- Up to 63A
- Up to three receptacles available.

Smart-i-Ph Box #3

- Metal enclosure
- Up to 63A
- Up to six receptacles can be available



The LS Cable and System Data-way consists of:

Circuit protection breaker

Current metering available from over-current, short-circuit currents from 1 to 63A.
MCCB with high capacity is available for special facility/device.
Internal accessories such as AX, AL, SHT, and UVT allow remote check of breaker on,
off, and fault conditions.



Current Transformer

Current metering available from 16 to 800 A.
- General : 63 to 800A
- Split type : 16 to 125A
The split type can be replaced while in use.



Smart-i

Smart-I provides real-time information about power usage. Power usage information
is sent through the selected metering module according to the single-phase and
three-phase method. The default configuration is power module + metering module
+ communication module. Additional functions/ can be added depending on needs.
The voltage used is avail able in a wide range from AC/DC 80 to 520V.



DCU (Data Concentrator)

Collects, stores, and sends information from each meter to the higher device.
Reliable communication is required for sending information from a large number of
racks. It must also be able to process information from multiple meters. Capable of
processing 128-Node simultaneously.
