Energy

      Covering almost cable types for various applications, LS Cable & System Vietnam is not only a top leading power cable manufacturer in Indochina but also having the highest capacity in Southeast Asia. All cables are manufactured to ISO specifications and subject to exacting quality control procedures, ensuring rigid testing to relevant standards at every process of manufacturing. To support our customer, products are categorized as follows:

      Iz/Ix/If-way(Building/Factory)

      Catalogues Download

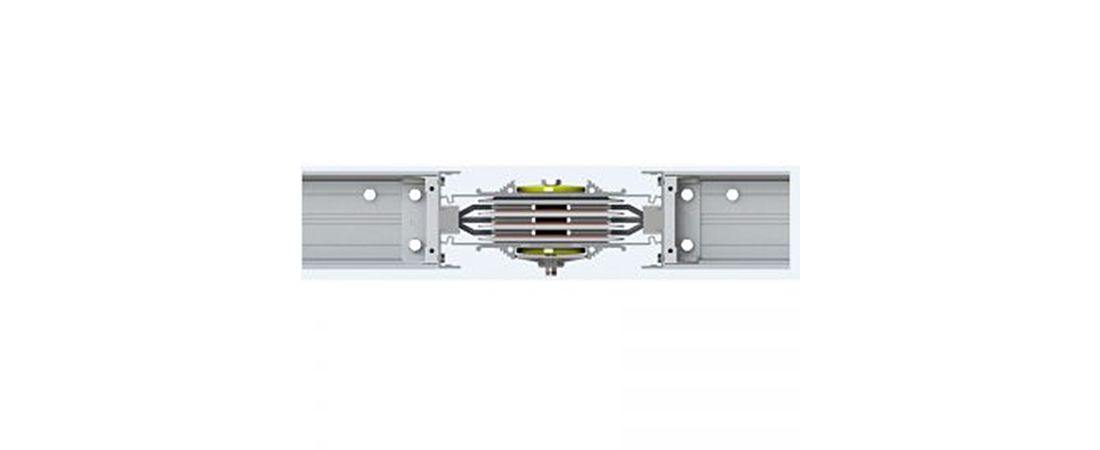

      LS Cable & System Vietnam I-series Busduct can be used for applications carrying up to AC 1000V and currents from 630A to 6300A. When connected using a joint kit the connected surface is very large thus minimizing contact resistance, and basically IP54 level can be realized. It can be produced in both exterior and interior IP65 configuration, and interior IP42 according to application requirements. The I-series is classified into three types according to insulation: Iz/Ix/If-way.

      Types

      • Iz-way
      – Polyester film insulator
      – Class F and Fire-retardant properties available as an option

      • Ix-way
      – Epoxy powder insulator

      • If-way
      – Fire-retardant product
      – Mica film insulator


      Benefits

      The aluminum enclosure boasts high thermo-diffusional efficiency. It is lightweight, therefore easy to install, and does not require much space. Load divergence is feasible through the plug-in box installed on the Bus duct enabling simplification of the power system. Safety has been enhanced through earthquake and explosion proof features, and management is convenient due to the application of temperature and power monitoring systems.



      Applications

      • Electrical room
      • Apartments and large buildings (high buildings, office buildings, knowledge industry centers, etc.)
      • Plants (semi-conductors, displays, petrochemical plants)
