Overhead Optical Cables

Overhead optical cables are suitable for overhead wires such as telephone poles. They are classified into Figure 8 type, ADSS, and Lashing type products according to overhead environment. A variety of structures is feasible according to usage environment and customer needs.

Types and purposes

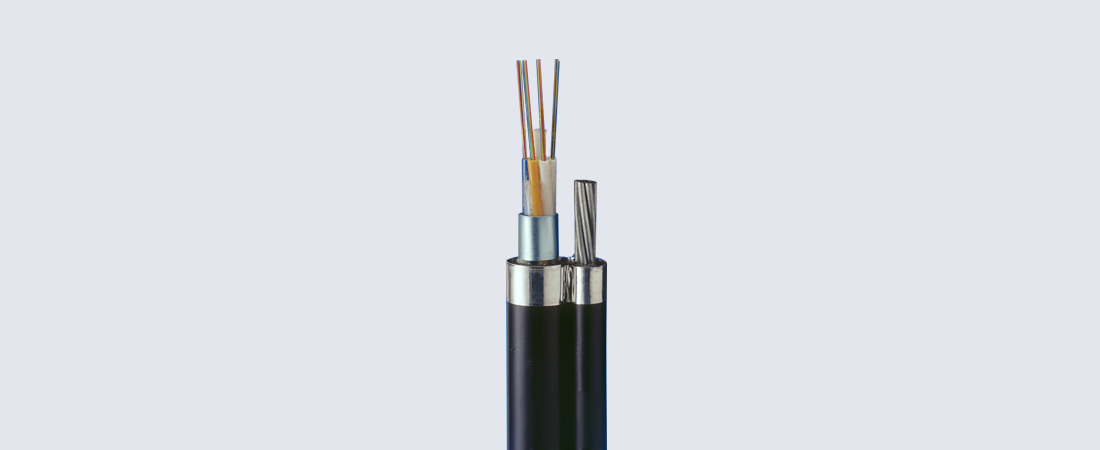

• F8 type
  - Self-supporting overhead wire cable
  - Long-distance transmission and subscriber network, broadband network

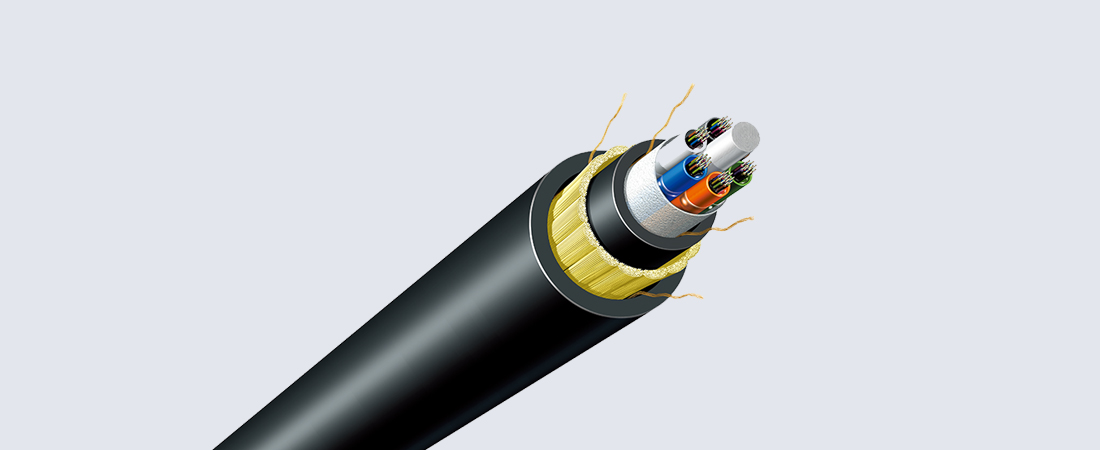

• ADSS (All Dielectric Self-Supporting)
  - Non-metal self-supporting overhead wire cable
  - Long-distance transmission and subscriber network, broadband network



Benefits

• F8 type
  - The cable includes a self-supporting wire, enabling easy routing and cost reduction

• ADSS
  - Easy routing and suitable for all overhead wires
  - Non-metal structure, enabling routing with power lines
  - Cable protection through an anti-tracking material, which is applied to the cable jacket and ultra-high-voltage lines



Main functions

• F8 type
  - Applicable to multiple core optical fibers
  - Armored with metal tape and flat FRP for protection against hot weather

• ADSS
  - Applicable to multiple core optical fibers
  - Can be armored on demand with metal tape and flat FRP for protection against hot weather
  - Lightweight cables and easy routing through PP tubes and white low-density jelly (PFMTM jelly)
 - App-dry structure with no jelly filling on the tube and cable core is applicable
